Basic data
ref.: 2F08056DXXX

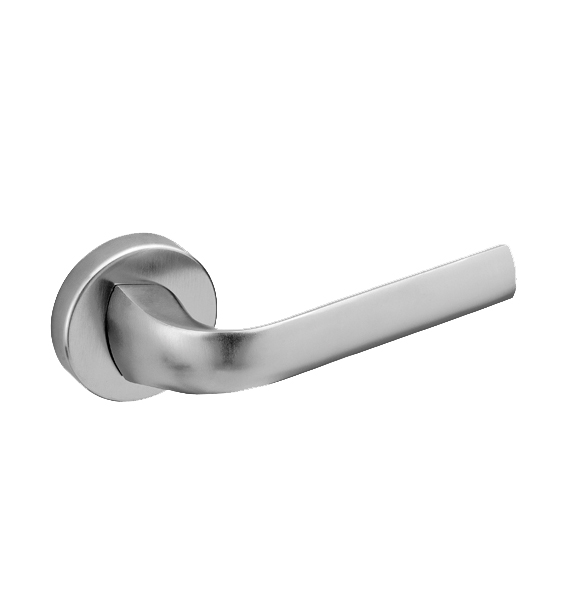

Acess Control EL300 RFID/Off-Line/handle CN11 with rosette rh.
ref.: 2F08056EXXX

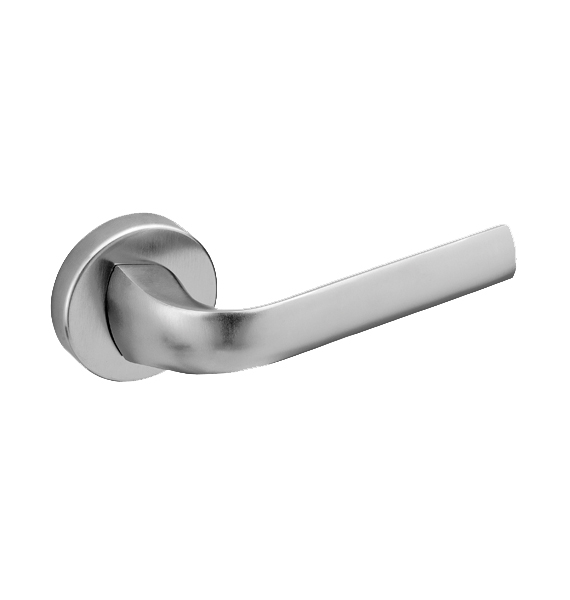

Acess Control EL300 RFID/Off-Line/handle CN11 with rosette lh.
Add to favorites
Add to favorites

The minimalist design allows the EL300 to reduce the visual impact of the proximity reader, inspired by the need to provide ON-LINE solution.

This new electronic lock presents a simplified assembly, without the need for complex wiring power, available in ON-LINE and OFF-LINE versions.


- RFID module, ISO 14443A (Mifare), with reading range up to 4 cm;
- Battery: 5 AA batteries 1.5V;
- Battery duration: over than 10.000 continuous opening cycles;
- Temperature: -10ºC to +55ºC;
- Humidity: of 20% to 93%;
- EN 12209: 2004 certification Class C5, 200.000 cycles;
- Maximum number of users per door: 65.000;
- Maximum number of doors per system: 1535;
- Maximum number of registered events in the lock: 504 (OFF-LINE);
- Number of schedules: 1 (per user);
- Number of access periods: 2 (per user);
- Common areas: 65.000;
- Users groups: without limit;
- Opening mode:
      - Standard (always closed);
      - Passage (free access) / Emergency;
      - Blocked / Unblocked.



- RFID identification technologyProximity (without contact);
- Mechanical lock with anti-panic function (lock can always be open by the interior), with
  anti-vandalism system and with soft latch;
- Applicable on doors with thickness greater than 40mm;
- Simple installation without cables passage to the door;
- Possible opening through an alternative mechanical cylinder (hidden);
- Charge of the batteries monitored on each lock by specified signals (light and sound);
- Free passage mode (doors maintain open allowing free movement);
- Record LOG events to non-volatile memory, including the use of mechanical key;
- Able to audit and configure through wireless network (ON-LINE) or with Programming Cards;
- Easy and intuitive access control software, for Windows®, with SQL database, multi-user
  support and available in several languages;
- Allows integration with several PMS systems for an easier guest card issuing and with POS
  systems, for client identification;
- Compatible with Connect software.

EL300 - Full line
