EL200
EL200
Access Control
EL200
Basic data
Close
EL200
ref.: 2F08120DXXX

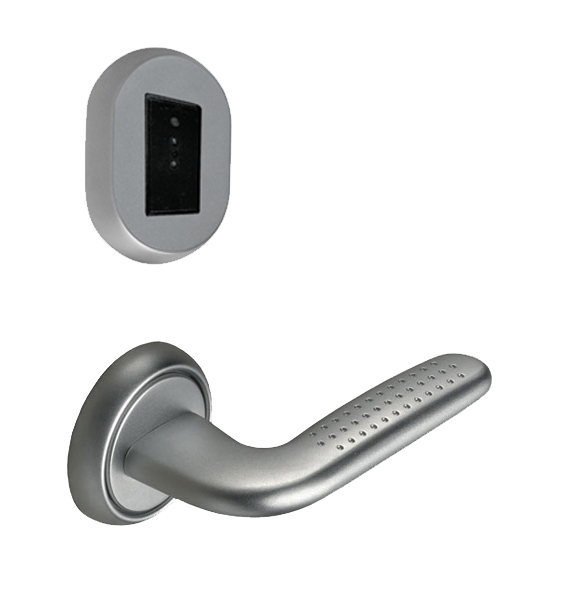

Acess Control EL200 RFID/Off-Line/handle Ergo A with plate rh.
ref.: 2F08120EXXX

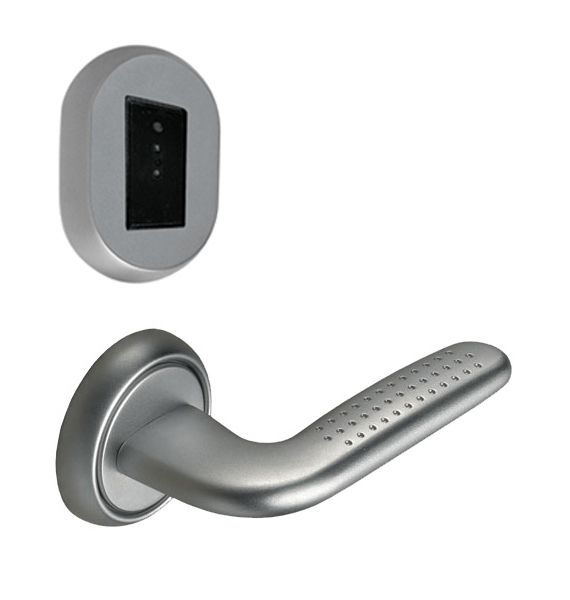

Acess Control EL200 RFID/Off-Line/handle Ergo A with plate lh.
Add to favorites
Add to favorites
Downloads
Close


EL 200 is a simple and intuitive access control unit, allowing to manage and control access’s in OFF-LINE mode.

Available with RFID identification technology, a wide choice of handles and finishings, allowing its adaptability to different styles and environments.

The EL 200 access control is defined by its technical features and design that result in a product with ergonomic of excellence.

TECHNICAL DATA:

- RFID module, ISO 14443A (Mifare), with reading range up to
  3 cm;
- Battery: 4 AA batteries 1.5V;
- Battery duration: over than 20.000 continuous opening cycles;
- Temperature: -10ºC to +55ºC;
- Humidity: of 20% to 93%;
- CF45 fire resistance class, certification according to
  EN 1634-1:2000;
- EN 12209: 2004 certification Class C5, 200.000 cycles;
- Maximum number of users per door: 878;
- Maximum number of doors per system: 999.999;
- Maximum number of registered events in the lock: 439;
- Number of schedules: 24 (per lock);
- Number of access periods: configurable (minimum by 15 minutes
  periods);
- Common areas: 32;
- Users groups: without limit;
- Opening mode:
     - Standard (always closed);
     - Passage (free access) / Emergency;
     - Blocked / Unblocked.



CARACTERISTICS:

- RFID identification technology – Proximity (without contact);
- Mechanical lock with anti-panic function (lock can always be open by the interior),
  with anti-vandalism system and with soft latch;
- Applicable on doors with thickness greater than 40mm;
- Simple installation without cables passage to the door;
- Possible opening through an alternative mechanical cylinder (hidden);
- Charge of the batteries monitored on each lock by specified signals (light and sound);
- Free passage mode (doors maintain open allowing free movement);
- Record LOG events to non-volatile memory, including the use of mechanical key;
- Able to audit and configure through a Portable Unit or with Programming Cards;
- Easy and intuitive access control software, for Windows®, with SQL database, multi-user
   support and available in several languages;
- Allows integration with several PMS systems for an easier guest card issuing and with
   POS systems, for client identification;
- Compatible with Smart software.

EL200 - Full line
