Portaro Connect
ref.: 2F08004-XXX

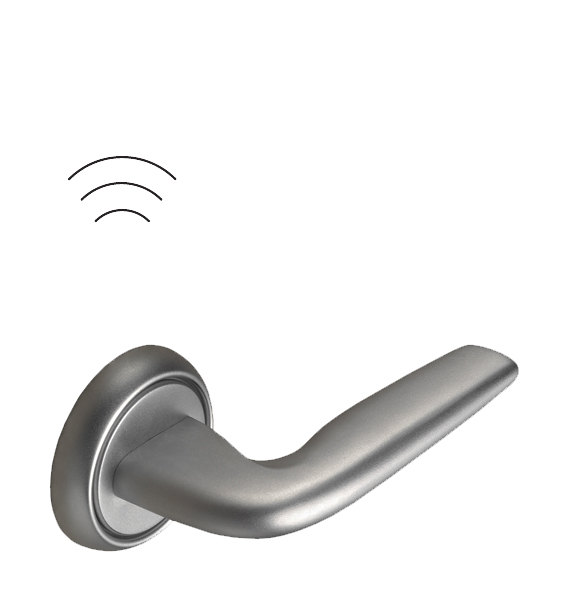

Portaro Connect V2 WiFi handle Ergo B with rosette rh.
ref.: 2F08005-XXX
Portaro Connect V2 WiFi handle Ergo B with rosette lh.
Add to favorites
Add to favorites


Portaro Connect® includes an advanced access control system, with proximity card reading.
The information is decoded, operating a clutch system that allows the door opening.
This access control system audits and records all opening and closing events. This feature makes this product a strong tool against unauthorized access.
The mechanical lock with anti-panic function always allows the opening the door from interior, even in case of being thumb-turn locked.
The drive by “clutch” allows greater protection against opening attempts.

TECHNICAL DATA:

- RFID module, ISO 14443A (Mifare), with reading range up to 4 cm;
- Battery: external power supply 5V DC;
- Temperature: -10ºC to +55ºC;
- Humidity: of 20% to 93%;
- CF30 fire resistance class, certification according to EN 1634-1:2000;
- EN 12209: 2004 certification Class C5, 200.000 cycles;
- Maximum number of users per door: 65.000;
- Maximum number of doors per system: 1535;
- Maximum number of registered events in the lock: 504 (OFF-LINE);
- Number of schedules: 1 (per user);
- Number of access periods: 2 (per user);
- Common areas: 65.000; - Users groups: without limit;
- Opening mode:
     - Standard (always closed);
     - Passage (free access) / Emergency;
     - Blocked / Unblocked.



CARACTERISTICS:

- RFID identification technology – Proximity (without contact);
- Mechanical lock with anti-panic function (lock can always be open by the interior), with
  anti-vandalism system and with soft latch;
- Applicable on doors with thickness greater than 40mm;
- Installation with cable passage to the door, for power supply (5V);
- Possible opening through an alternative mechanical cylinder (hidden);
- Charge of the batteries monitored on each lock by specified signals (light and sound);
- Free passage mode (doors maintain open allowing free movement);
- Record LOG events to non-volatile memory, including the use of mechanical key;
- Able to audit and configure through wireless network (ON-LINE) or with Programming Cards;
- Easy and intuitive access control software, for Windows®, with SQL database, multi-user
  support and available in several languages;
- Allows integration with several PMS systems for an easier guest card issuing and with
  POS systems, for client identification;
- Compatible with Connect software.

Portaro Connect - Full line
